PurgEye™100
WELD PURGE MONITOR™
PurgEye™100 the newest, most advanced Weld
Purge Monitor™ with new features and capabilities that
place this monitor way ahead in the field of weld purge
monitoring. The Argweld® product line is the only one to
offer a complete “family” of Weld Purge Monitors™ for all
applications and to suit every budget. With the addition
of the exciting new PurgEye™ 100, the industry’s most
popular line of purge monitors has raised the bar even
higher with the latest in instrumentation and advances in
technology.
The innovative Push Button Auto Calibration on the
front of the PurgEye™100 allows the user to calibrate at
atmospheric level and again at the lowest oxygen reading
with just the push of a button and provides increased
accuracy.
With tungsten inert gas welding (gas tungsten arc
welding) of important joints in stainless steels and other
reactive metals, it is essential to know that the oxygen
content in the welding volume has been reduced to a
satisfactorily low level before commencing the weld. By
using a proper Weld Purge Monitor™ the guesswork is
eliminated and the welders can do their job with increased
confidence and assurance of a good purge. Use the right
tool for the job! Monitor includes:
- Push buttom “Auto Calibration” feature
- Low Battery Indicator
- Low Sensor Indicator
- Englarged Screen and Larger Digits
- Tripod Mount
- Increased Sensor Reading Range
- Wrist and Neck Carry Strap
- Protective Rubber Housing
- Quick Connect/Disconnect Fitting for Gas Purge Tubing
- Automatic Sleep Mode When Not in Use
Some Advantages and Key Features
- Auto Calibration Feature
Calibrate your own monitor at any time without having to
return it to the factory. Also, each time you weld to ensure
that your readings are the most accurate possible.
The calibration facility even has the ability at the touch
of a small button to calibrate both at atmospheric level of
20.94% and at 0.01% (100 ppm) level of oxygen.
- Low Sensor indicator
You will never again be with an unusable monitor!
The “low sensor level signal”, giving plenty of time to
obtain a new sensor which you can simply fit and calibrate
yourself.
- Low Battery Indicator
Another ‘first’ in the design and manufacture of
PurgEye™100 Weld Purge Monitors™ is the low battery
indicator that appears in the corner of the screen at the
appropriate time.
- Automatic Sleep Mode
When the Monitor registers more than 20% oxygen for
periods longer than 1 hour, it will automatically switch off to
conserve sensor and battery life.
- Extra Range
The PurgEye™ 100 Weld Purge Monitor™ indicates
oxygen levels down to 100 parts per million (PPM) 0.01%
and measures accurately down to 0.1%
- Enlarged Screen
The new enlarged screen uses 24 mm size digits for easy
viewing at longer distances from the work station. These
digits are approximately 41% larger than other models.
- Tripod Mount
A rugged tripod mount has been integrated into the
housing. This allows the PurgEye™ 100 Weld Purge
Monitor™ to be firmly mounted on a tripod of your
choice.
With mounting the instrument on a tripod, easy visual
observation is provided so you can see the PurgEye™
100 Weld Purge Monitor™ from any part of the working
space.
A range of tripods or other fixing devices is available on
which you can mount and station your PurgEye™ 100.
A rugged tripod mount has been integrated into the
housing, which allows the PurgEye™ 100 Weld Purge
Monitor™ to be firmly mounted on a tripod of your
choice.
By mounting the instrument on a tripod, the welder can
see the PurgEye™ 100 Weld Purge Monitor™ from any
part of the working space. A range of tripods and other
fixing devices are available on which you can mount
and station your PurgEye™ 100
Technical Data and Specification
The PurgEye™ 100 Weld Purge Monitor™ is shipped
in an attractive, robust carry, presentation and storage
case to maintain the instrument in good condition and
to keep it together with all accessories.
The PurgEye™ 100 Weld Purge Monitor™ can be used
with any pipe welding system, any weld purging
chamber or weld purging enclosure.
The sensor is easy to replace and self calibrate using
the advanced calibration features of the
PurgeEye™100 and the specially written algorithm that
provides extreme accuracy at 0.1% where it is
especially important for weld purging.

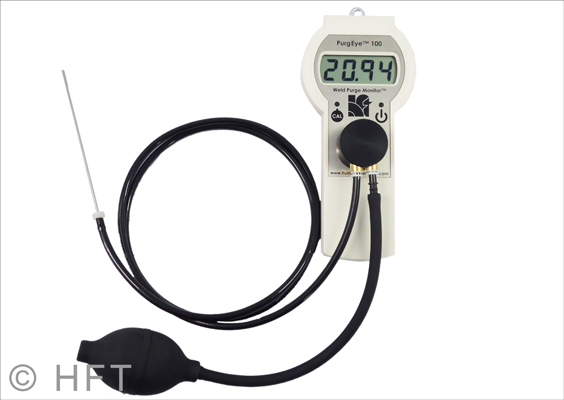

The PurgEye™ 100 Weld Purge Monitor can be used
as a continuously reading instrument with free flow of
the purge exhaust gas across the sensor, or as a
sampling instrument with the hand vacuum pump and
stainless steel probe assembly extracting samples from
the purged volume, as and when desired.
Accessories, Spares and Replacements
- Gorilla Tripod
- Camera Tripod
- Sensor Removal Tool
- Rubber Protective Housing
Specifications
PurgEye™ 100 Weld Purge Monitor™ Accuracy Range
| Measuring Range: |
0.01% - 20.94 % Oxygen (100 ppm to atmosphere) |
| Accuracy: |
At oxygen level 20.0% = ± 0.2%
At oxygen level 2% = ± 0.02%
|
| Size: |
94 mm (top width)
58.5 mm (handle width)
199 mm high (from bottom to top of eyelet)
63 mm deep (with flow adaptor)
44 mm deep (without flow adaptor)
|
| Power: |
Battery type 2 x AA (included)
|
| Scale: |
LCD (Liquid crystal display) 24 mm
Ref: Old MKV Model 17 mm
41% increase in size
|
| Weight: |
0.210 kg
|
|
With inert gas welding, before commencing, it is essential to know that the oxygen content in
the welding volume has been reduced to a satisfactory level. The Purge Monitor is specifically
designed to measure oxygen content down to 0.01% with a high degree of accuracy. An oxygen
content of 1.0% is normally considered suitable to ensure that there is no oxidation of the
weld (there may be some exceptions to this figure, such as with titanium, zirconium and other
exotic metals.)
The PurgEye™ 100 Weld Purge Monitor™ can be used as a continuous measuring device throughout the process or as
a sampling instrument for spot checks. Visible demonstrations and routine inspections for
quality control are made simple. The monitor can be used with any pipe purging system or argon
welding enclosure. It is very compact and completely portable.
Small, portable and very simple to use
Once the desired oxygen level is achieved, welding can begin.
NOTHING COULD BE SIMPLER!
|
Use the right tool for the job!
|
|
