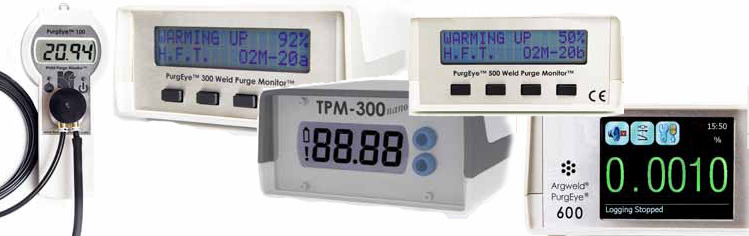

ARGWELD® PURGE MONITORS
|
|
The all-new PurgEye™ 100 is the most advanced purge monitor of its kind from the makers of the best-selling MK V Purge Monitor.
This new unit, like the earlier MK V models, is small, portable, easy to use and reliable.
It will monitor O2 levels down to 0.01% (100 PPM) with a high degree of accuracy and comes complete with a stainless steel probe, 6 ft
rubber tubing, aspirator bulb and carrying strap in a custom foam-lined case.
It can be used in a continuous monitoring mode by connecting the tubing to an exhaust port of a purging device or enclosure and allowing the
gas to flow freely over the sensor, or it can be used in a sampling mode by inserting the stainless steel probe into the area being purged or
to an exhaust and using the aspirator bulb to initiate the flow across the sensor.
The Argweld® product line has led the industry in cutting edge weld purging technology for over 30 years, and continues the tradition
with the new PurgEye™ 100 unit that offers even greater accuracy and unmatched features.
The Argweld® PurgEye™ 100 is specifically designed and built for welding applications to give accurate readings at
the low O2 levels required for weld purging. In fact, the PurgEye™ 100 is significantly more accurate than any purge
monitor of its kind. Don’t risk your welds with inferior purge monitors or O2 sensors and monitors designed for confined space or medical
applications that are inaccurate at lower O2 levels.
|

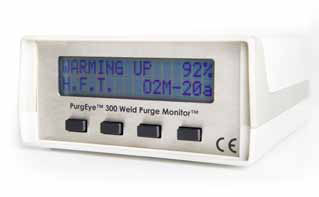

PurgEye® 300
Weld Purge Monitor™ that reads from1000 Parts per Million
(PPM) down to 10 PPM for critical high purity weld applications
that require very low O2 content such as titanium.
Features
include:
- Automatic alarms if O2 level exceeds pre-set limits.
- Data Logging capability with optional PurgeLog™ software
- Maintenance-free, long lasting sensor (5 yrs)
- Ability to interface with welding machines to suspend welding
process if O2 levels exceed pre-set limits
- Designed for applications with free-flowing purge exhaust
such as welding enclosures or chambers
|
PurgEye® 300 "NANO"
The “Nano” is a simplified version of the PurgEye® 300 offering
all of the accuracy without all the bells and whistles. The
PurgEye® 300 Nano is the industry’s most affordable Weld
Purge Monitor® capable of accurately reading O2 levels down
to 10 Parts Per Million (PPM).
- Small, lightweight and portable
- Reads from 900 PPM down to 10 PPM
- Low maintenance, long-lasting sensor
|

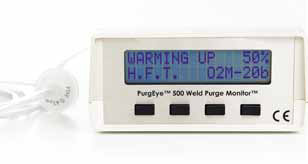

PurgEye® 500
The PurgEye® 500 is a Parts Per Million Weld Purge Monitor®
that reads from 1000 PPM down to 10 PPM with a built in
pump for extracting purge samples for applications where a
constant positive pressure flow may not be possible.
- Automatic alarms if O2 level exceeds pre-set limits.
- Data Logging capability with optional PurgeLog™ software
- Long lasting, maintenance-free sensor with 5 yr Guarantee
- Ability to interface with welding machines to suspend
welding process if O2 levels exceed pre-set limits
|

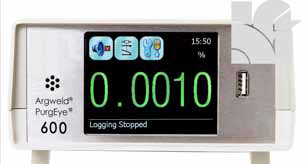

 PurgEye® 600
The most advanced purge monitor available with revolutionary
new technology! The world’s first Weld Purge Monitor™ capable
of accurately reading O2 levels from ambient (20.94%) all the
way down to 10 PPM.
- Touch-screen technology
- Internal sampling pump
- Capable of connecting to welding power supply to suspend
welding process if O2 levels exceed pre-set limits
- Graphing and Data logging functions with real-time clock for
QA / QC records
- USB port for data storage
|
Use the right tool for the job!
|
|
