Qwik-Freezer® equipment utilizes liquid carbon dioxide (CO₂) to freeze stationary water in selected sections of pipe or tubing. By producing very low "dry ice" temperatures, Qwik-Freezer® forms a secure in-line ice plug. This temporarily isolates the water in the system and allows repairs or modifications to be made without draining down or shutting off systems.

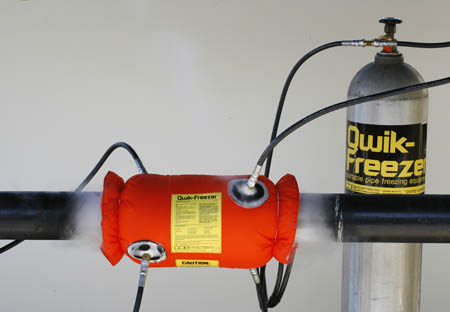

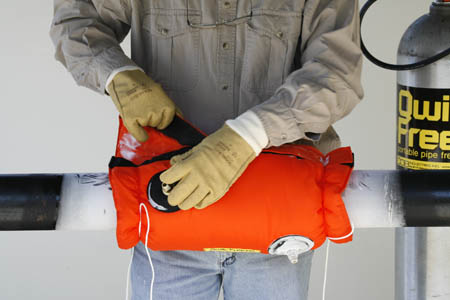

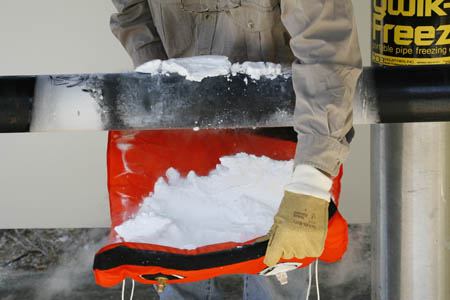

The Qwik-Freezer® kit is easy to use. A specially designed jacket is wrapped  around the pipe at the point where the freeze is required. A nozzle on the jacket is then coupled to a cylinder of liquid CO₂ by means of a high pressure hose. When the liquid CO₂ is injected into the space between the jacket and pipe, it immediately expands to form a solid carbon dioxide (dry ice) at a temperature of -109ºF (-78ºC). This low temperature quickly freezes the contents forming a secure "ice plug" which seals the pipe.

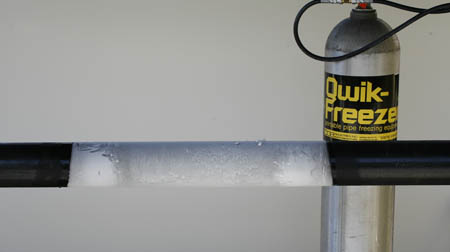

The "ice plug forms only in a section of pipe covered by the jacket so the resulting rise in pressure is very small and there is no damage to the pipe. The technique can be used safely on iron, lead, stainless steel, copper, brass and plastic pipe.

The water is brought to a static condition. The Qwik-Freezer_®jacket (orange) is then wrapped around the pipe, Jacket# 1, at a nearby upstream location. Injecting liquid CO₂ into the jacket rapidly freezes the water in the pipe, permitting valve removal for servicing or replacement. Jacket #2 shows the position of a second Qwik-Freezer_® jacket and tank used when a double freeze is required to block flow on both sides of the valve.

Major Advantages

Saves valuable time normally lost in draining down and refilling a system. Avoids complete shutdown of systems and equipment (as in a sprinkler or water supply system) Prevents waste of large amounts of water. Eliminates handling of waste water. Safe and cost effective.

FOR USE IN MANY INDUSTRIES

Office & Commercial Buildings Petro/ Chemical Refineries Food & Beverage Plants. Municipalities. Hospitals/Nursing Homes Industrial Plants Water Treatment Facilities Conventional & Nuclear Power Plants

Residential Restaurants Ships Schools/Universities Hotels/Motels Water Utilities Aerospace

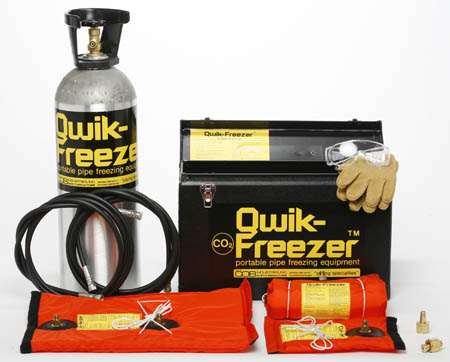

Qwik-Freezer kits consist of insulating pipe jackets, CO₂ cylinder(s), reinforced high pressure hose, fittings, insulated work gloves, a rubber mallet, safety glasses, operating manual, timing log and carrying case.

CO₂CYLINDER

COB provides specially adapted liquid CO₂ cylinders for use with Qwik-Freezer equipment. The COB QFAL20, a 20 pound aluminum cylinder with protective handle, is supplied with 3/8" to 3" kits. A 50 pound aluminum cylinder, QFAL50, is supplied with 4"-8" kits as standard equipment. CO₂ cylinders can be filled by local welding and carbonic distributors.

Qwik-Freezer Jackets

QF101 for 3/8" (9.375 mm.) to 3/4" (18.75 mm.) Pipe size. QF 102 for 3/4" (18.75 mm.) to 1-1/2" (37.5 mm.) Pipe size. QF103 for 1-1/2" (37.5 mm.) to 3" (75 mm.) Pipe size. QF104 for 3-1/2" (87.5 mm.) to 4" (100 mm.) Pipe size. QF106 for 5" (125 mm.) to 6" (150 mm.) Pipe size. QF108 for 7" (175" (175 mm.) to 8" (200mm.) Pipe size.



3/8" to 8" FREEZING TABLELE

Pipe Jacket

QF 101 8 inches

QF 102 12 inches

QF 103 14 inches

QF 104 20 inches

QF 106 28 inches

QF 108 33 inches

Pipe Size

1/2" (12.5mm.)

3/4" (18.75mm.)

1" (25mm.)

1-1/2" (27.5mm.)

2" (50mm.)

3" (75mm.)

3" (75mm.)

4" (100mm.)

5" (125mm.)

6" (150mm.)

7" (175mm.)

8" (203mm.)

No. of Injections

2

2

3

4

3

6

6

7

9

11

15

17

Injection Time

1 min.

1 min.

1 min.

1 min.

5 min.

5 min.

8 min.

10 min.

8 min.

8 min.

8 min.

8 min.

Waiting Time

3 min.

3 min.

5 min.

5 min.

5 min.

5 min.

8 min.

10 min.

8 min.

8 min.

8 min.

8 min.

Total Time Required

8 min.

8 min.

18 min.

24 min.

30 min.

60 min.

84 min.

126 min.

190 min.

220 min.

310 min.

340 min.

Approx. CO2 Required

1 lb.

1 lb.

3 lbs.

6 lbs.

18 lbs.

36 lbs.

42 lbs.

65 lbs.

243 lbs.

297 lbs.

405 lbs.

475 lbs.

*NOTE: The table above is for typical freezing of static water at 68ºF in Schedule 40 steel pipe. Higher temperatures will require additional injection and waiting periods. Plastic pipe will take up to 3 times longer. Refer to Operating Manual for detailed instructions.

For freezing applications on pipes larger than 8" (203mm.) I.D. please contact COB industries, Inc. for more Information.
